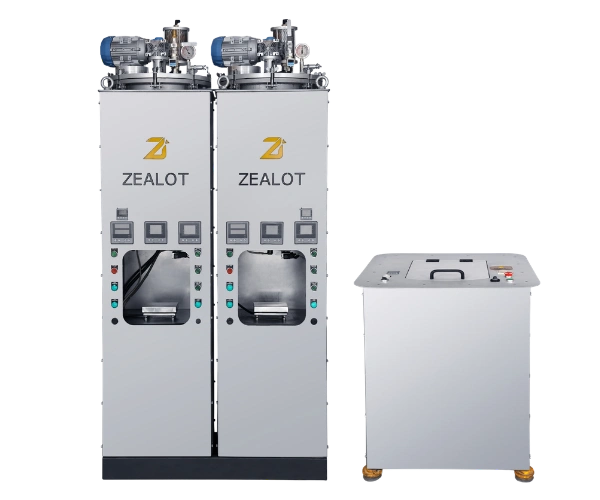

Hand Batch Cast Polyurethane Elastomer Solution
Zealot's Hand Batch Cast Polyurethane Elastomer Solution is purpose-built for semi-automatic cast polyurethane elastomer processing - delivering accurate component ratios, independent temperature control per tank, and consistent output across every batch. Whether you're casting custom rollers, industrial wheels, or small-to-medium volume components, our modular vortex-mixing system eliminates the ratio errors, temperature inconsistencies, and operator dependency that drive up your rejection rate and erode your margin.
With over 30 years of polyurethane engineering experience and 100+ machines delivered across 4+ countries, Zealot Inc. is the precision partner Indian and global manufacturers trust when controlled, flexible production is the priority.
Most Hand Batch PU Casting Operations Lose Money Before the Part Leaves the Mould
In small-to-medium polyurethane production environments, the process is deceptively simple on paper: mix two components, pour into a mould, wait for it to cure. But in practice, the gaps between a good batch and a failed one come down to variables that are nearly impossible to control by hand.
Common production failures in Hand Batch PU operations:
- Ratio errors - Even a marginal miscalculation between the polyol and isocyanate components causes parts to cure soft, brittle, or with internal voids
- Temperature inconsistency - PU materials are temperature-sensitive; uncontrolled ambient or material temperature leads to unpredictable reaction rates and surface defects
- Operator dependency - Quality shifts with the person running the batch. No process stability. No repeatable output
- Material waste - Poorly timed or over-mixed batches that react too fast or too slow result in scrapped material and lost production hours
- No documentation or repeatability - Every batch is guesswork, making it nearly impossible to troubleshoot, scale, or replicate a successful formulation
Zealot's Hand Batch system is engineered to eliminate these variables — giving your operators a structured, controlled environment where every batch starts from the same point and ends with the same result.
What Zealot's Hand Batch System Delivers
Industries We Build For
High-Precision Systems Built for Your Sector
Zealot's Hand Batch Cast Polyurethane Elastomer Solutions are used across a wide range of industrial and manufacturing applications where part quality directly impacts downstream performance.
Automotive & OEMs
Heavy Industry & Mining
Wind Blade Manufacturing
Marine & Port Equipment
Footwear Manufacturing
Industrial Rollers & Wheels
Typical End Products
Hand Batch vs. Automatic - Choose the option that best suits your operation.
Not Every Operation Needs Full Automation. Here Is How to Decide.
| - | Hand Batch | Automatic MMD System |
|---|---|---|
| Best For | Custom batches, R&D, small-to-medium volumes | High-volume, repeat production |
| Capital Investment | Lower | Higher |
| Formulation Flexibility | High - switch easily between materials | Optimized for fixed formulations |
| Operator Involvement | Moderate | Minimal |
| Output Rate | Batch-driven | Continuous, up to 12 kg/min |
| Tank Configurations | Up to 12 independent tanks, 50–300L | 50–200L stainless steel tanks |
| Mixing | Vortex mixing with precision weighing | Dynamic mixing at up to 2800 RPM |
| Ideal Production Stage | Start-up, expansion, niche custom production | Established, scaled manufacturing lines |
Technical Specifications & Features
Hand Batch Cast PU Elastomer Solution
| Specification | Detail |
|---|---|
| Material | Cast Polyurethane Elastomer (MDI / TDI systems) |
| Dispensing type | Semi-automatic pouring with pneumatic valve control |
| Mixing type | Vortex mixing |
| Tank sizes | 50L, 100L, 150L, 200L, 300L |
| Max tank units | Up to 12 independent tanks |
| Working temperature | Up to 130°C |
| Temperature control | Independent heating and insulation per tank |
| Flow rate | As per customer requirement |
| Ratio precision | Built-in weighing scale per tank |
| Tank material | Stainless Steel Grade 304 |
| Skill requirement | Low — operator-friendly for shop-floor deployment |
| Warranty | 2 years standard |
Why Choose Zealot?
A Legacy of Trust and Technological Leadership
When you partner with us, you're not just getting a machine—you're getting a complete solution built on our years of experience. We make it our business to ensure your success.
Specialized Expertise
Innovative
Solutions
High-Quality Production
Comprehensive Support
Engineered for Durability
